Laser Cutting Machine

Picosecond Laser Cutting Machine for FPC, PI Film, PET Film and Copper Foil

Machine Model: #30W Picosecond · 600×600mm
Stock: In Stock & Customizable

Contact Customer Service

Beipin picosecond laser cutting machine: 30W picosecond laser with high-precision galvo scanner, granite gantry, linear motors and CCD vision positioning, 600×600mm vacuum table. Cuts FPC stiffeners, flexible circuit outlines, PI film, PET film, coverlay and copper foil. Free sample test....

30W picosecond laser: small heat-affected zone, clean edges
High-precision galvo scanner on a granite gantry with linear motors
CCD camera finds fiducials and aligns the cut path
600×600mm vacuum table with lift and automatic roll feeding
Cuts FPC stiffeners, flex outlines, PI/PET film, coverlay and copper foil
Free sample test before you order

18100692808

The Beipin picosecond laser cutting machine cuts FPC and thin films with a 30W picosecond laser and a high-precision galvo scanner. Picosecond pulses remove material before heat can spread, so edges stay clean, with less yellowing, charring and melt. This suits heat-sensitive PI film, PET film, coverlay and flexible circuits. The machine uses a granite gantry with high-precision linear motors. A CCD camera locates the pattern before cutting, and the 600×600mm vacuum table takes full sheets or works with an automatic roll feeder.

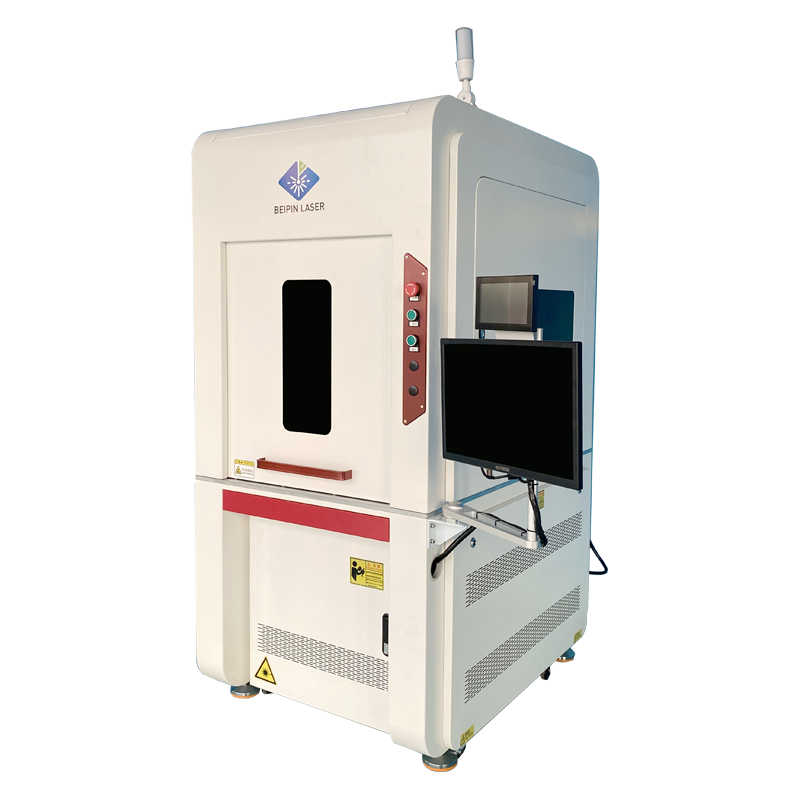

Beipin picosecond laser processing machine (appearance and configuration are customized per project)

What it cuts

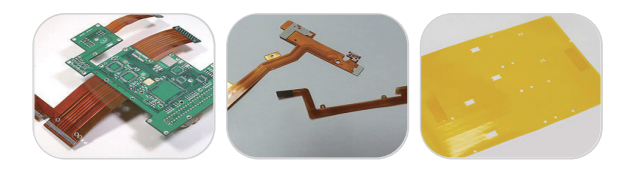

Laser cutting examples: rigid-flex board, FPC and PI film

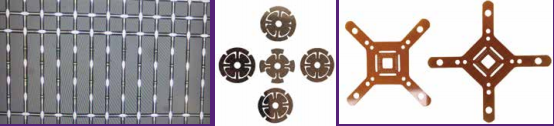

Laser cutting examples: film and FPC outlines

FPC stiffeners: outline and hole cutting.
Flexible circuit outlines: finished flex outlines and irregular contours.
PI and PET film: insulation and protective film outlines, holes and hole arrays.
Coverlay: window opening and outline cutting.
Copper foil: outline and pattern cutting of thin copper foil.

The photos show sample examples. Results and speed depend on material, thickness and layer stack (adhesive, release liner). Send your material and we will test it.

Machine configuration

Laser	Picosecond laser, 30W
Scanner	High-precision galvo scanner (Beipin custom) with precision focusing lens
Motion	Granite gantry with high-precision linear motors; servo-driven Z axis
Vision	CCD camera positioning
Work table	Vacuum table, 600×600mm working area, with lift and following dust extraction
Loading	Automatic roll feeding and take-up; manual loading for sheets
Control	Beipin control card and software, Advantech industrial PC
Cooling	Chiller for picosecond laser
Safety	Dust cover over beam path, tower light, emergency stop
Footprint	1650×1650×2000mm (L×W×H)
Power	Single-phase 220V, about 8.5kW

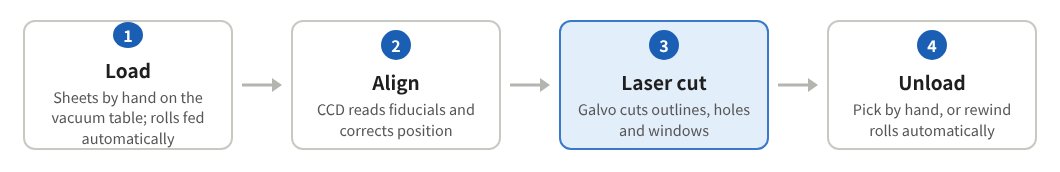

Workflow

Place the sheet on the vacuum table (rolls are fed automatically).
The CCD camera reads fiducials and corrects position.
The galvo cuts outlines, holes or windows.
Unload by hand, or rewind automatically for rolls.

Site requirements

Power	Single-phase 220V, about 8.5kW
Floor	Load capacity above 2000kg
Space	1650×1650×2300mm; leveled to 0.01mm/m or better
Environment	25±2°C, ≤60%RH non-condensing, clean and low-dust
Vibration	Floor vibration <5μm, acceleration <0.05G

How to start

Send samples or drawings with material, thickness and cut pattern.
We choose laser parameters and cutting paths for your material.
We cut samples and send edge micrographs and dimensional measurements.
We confirm cycle time and loading method (sheet or roll).
You receive a proposal and quotation.

Information we need for a quote

Material and thickness (with or without adhesive or release liner), drawing or cut pattern, tolerance, daily output, and whether you run sheets or rolls.

Free sample test: send us your samples or drawings. We cut them and send back microscope photos and measurement data. WhatsApp: +86 186 1631 3040 | Contact us

FAQ

Picosecond or UV nanosecond laser for film cutting?

Picosecond pulses are about a thousand times shorter than nanosecond pulses, so heat has no time to spread. Edges show less yellowing, charring and melt, which matters for PI film, coverlay and FPC with tight appearance and size requirements. If edge quality is less critical and cost matters more, a UV nanosecond machine can also work. We can test both on your samples.

How thick can it cut?

This machine is for thin materials such as FPC, films and thin copper foil. The maximum thickness and layer count (adhesive, multi-layer laminates) are confirmed by sample testing.

Does it handle both sheets and rolls?

Yes. Sheets are loaded by hand onto the vacuum table. Rolls run continuously with the automatic feeding and take-up unit.

How does it compare with other Beipin cutting machines?

For FPC and film, choose this picosecond machine or the ultra-precision UV laser cutting machine. For thin metal tubes, choose the precision four-axis laser tube cutting machine.
